Name: MSI GeForce GTX 980 GAMING
Brand: MSI

MSI GeForce GTX 980 GAMING

Specs, info and data

The GPU Database

Featuring 270+ GPU models — and growing.

Database > GPUs > NVIDIA GTX 980 > MSI GeForce GTX 980 GAMING

MSI GeForce GTX 980 GAMING
GPUs.net

Information
PlatformConsumer
ArchitectureMaxwell 2.0
GenerationGeForce 900
Previous GenGeForce 700
Next GenGeForce 10
InterfacePCIe 3.0 x16
Core
NameGM204
FoundryTSMC
Process Node28 nm
Transistors5200 million
Die Size398.0 mm²
Density13.1 /mm²
GPU Core Config
Cores2048
TMUs128
ROPs64
Memory
TechnologyGDDR5
Size4 GB
Bus256 bit
Bandwidth224.4 GB/s
Speed7.0 Gbps

Clocks
Base clock1216 MHz 1127 MHz
Boost Clock1317 MHz 1216 MHz
Memory Clock1753 MHz
Power
8-pin2
TDP165 w
Recommended PSU500 w 450 w

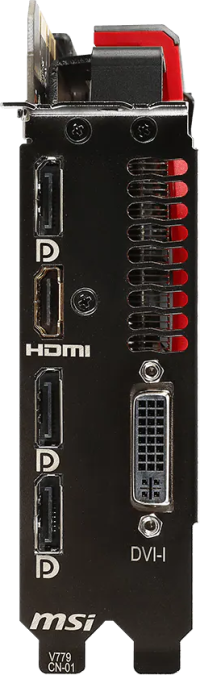

Display
DisplayPort3 1.2
HDMI1 1.4a
DVI-I1
Dimensions
Slots2
Length279 mm 267 mm
Height140 mm 111 mm
Width36 mm 40 mm
Weight936 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus GOLD20TH GTX 980 Platinum GOLD20TH-GTX980-P-4GD5	1431 MHz +17.7%	2
Asus ROG Matrix GTX 980 MATRIX-GTX980-4GD5	1216 MHz
NVIDIA GTX 980 Reference 900-1G401-000-000	1216 MHz	2	267 mm	111 mm	40 mm
Asus ROG Poseidon GTX 980 Platinum POSEIDON-GTX980-P-4GD5	1279 MHz +5.2%	2	287 mm
Asus ROG Poseidon GTX 980 POSEIDON-GTX980-4GD5	1216 MHz	2	287 mm
MSI GeForce GTX 980 GAMING	1317 MHz +8.3%	2	279 mm	140 mm	36 mm
MSI GeForce GTX 980 GAMING LE	1253 MHz +3.0%	2	279 mm	140 mm	936 mm

Disclaimer! Hashrate.no utilizes some affiliate and referral links which may generate a small commission. Thanks for supporting us! We also use cookies to track users' input, like, but not limited to power cost, sorting, filters, and prices. We make no warranties of any kind in relation to our content, including but not limited to accuracy and updatedness. Hashrate.no are NOT responsible for any damage; always set your overclock at YOUR own risk and please gain knowledge and do your research! We are not responsible for external links and information that is found there. © Lineo AS 2021-2026

Information
Platform	Consumer
Architecture	Maxwell 2.0
Generation	GeForce 900
Previous Gen	GeForce 700
Next Gen	GeForce 10
Interface	PCIe 3.0 x16

Core
Name	GM204
Foundry	TSMC
Process Node	28 nm
Transistors	5200 million
Die Size	398.0 mm²
Density	13.1 /mm²

Memory
Technology	GDDR5
Size	4 GB
Bus	256 bit
Bandwidth	224.4 GB/s
Speed	7.0 Gbps

Clocks
Base clock	1216 MHz 1127 MHz
Boost Clock	1317 MHz 1216 MHz
Memory Clock	1753 MHz

Dimensions
Slots	2
Length	279 mm 267 mm
Height	140 mm 111 mm
Width	36 mm 40 mm
Weight	936 g

GPU Core Config
Cores	2048
TMUs	128
ROPs	64

Power
8-pin	2
TDP	165 w
Recommended PSU	500 w 450 w

Display
DisplayPort	3 1.2
HDMI	1 1.4a
DVI-I	1
