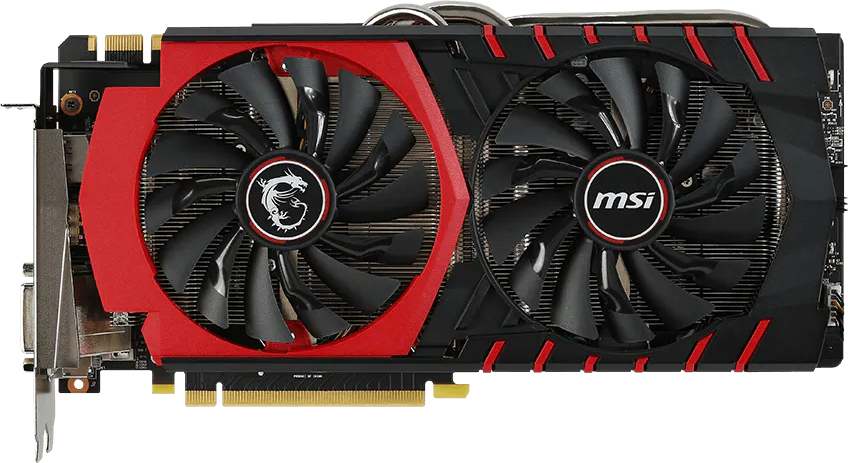

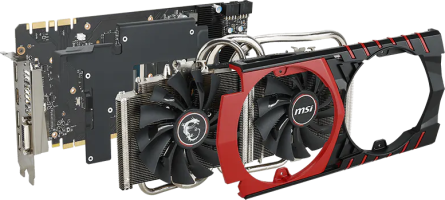

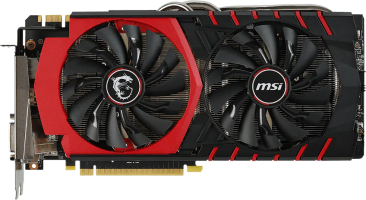

MSI GeForce GTX 980 GAMING LE
GPUs.net

Information
PlatformConsumer
ArchitectureMaxwell 2.0
GenerationGeForce 900
Previous GenGeForce 700
Next GenGeForce 10
InterfacePCIe 3.0 x16
Core
NameGM204
FoundryTSMC
Process Node28 nm
Transistors5200 million
Die Size398.0 mm²
Density13.1 /mm²
GPU Core Config
Cores2048
TMUs128
ROPs64
Memory
TechnologyGDDR5
Size4 GB
Bus256 bit
Bandwidth224.4 GB/s
Speed7.0 Gbps

Clocks
Base clock1152 MHz 1127 MHz
Boost Clock1253 MHz 1216 MHz
Memory Clock1753 MHz
Power
8-pin2
TDP165 w
Recommended PSU500 w 450 w

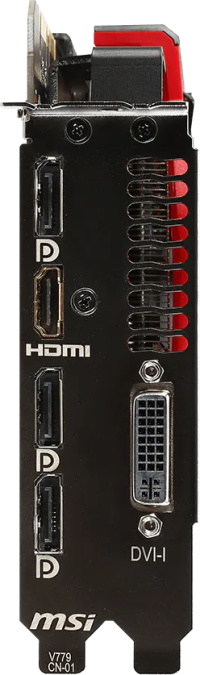

Display
DisplayPort3 1.2
HDMI1 1.4a
DVI-I1
Dimensions
Slots2
Length279 mm 267 mm
Height140 mm 111 mm
Width936 mm 40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus GOLD20TH GTX 980 Platinum GOLD20TH-GTX980-P-4GD5	1431 MHz +17.7%	2
Asus ROG Matrix GTX 980 MATRIX-GTX980-4GD5	1216 MHz
NVIDIA GTX 980 Reference 900-1G401-000-000	1216 MHz	2	267 mm	111 mm	40 mm
Asus ROG Poseidon GTX 980 Platinum POSEIDON-GTX980-P-4GD5	1279 MHz +5.2%	2	287 mm
Asus ROG Poseidon GTX 980 POSEIDON-GTX980-4GD5	1216 MHz	2	287 mm
MSI GeForce GTX 980 GAMING	1317 MHz +8.3%	2	279 mm	140 mm	36 mm
MSI GeForce GTX 980 GAMING LE	1253 MHz +3.0%	2	279 mm	140 mm	936 mm
