Asus GOLD20TH GTX 980 Ti Platinum Database - Specs, information & files

Asus GOLD20TH GTX 980 Ti Platinum

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > NVIDIA GTX 980 Ti > Asus GOLD20TH GTX 980 Ti Platinum

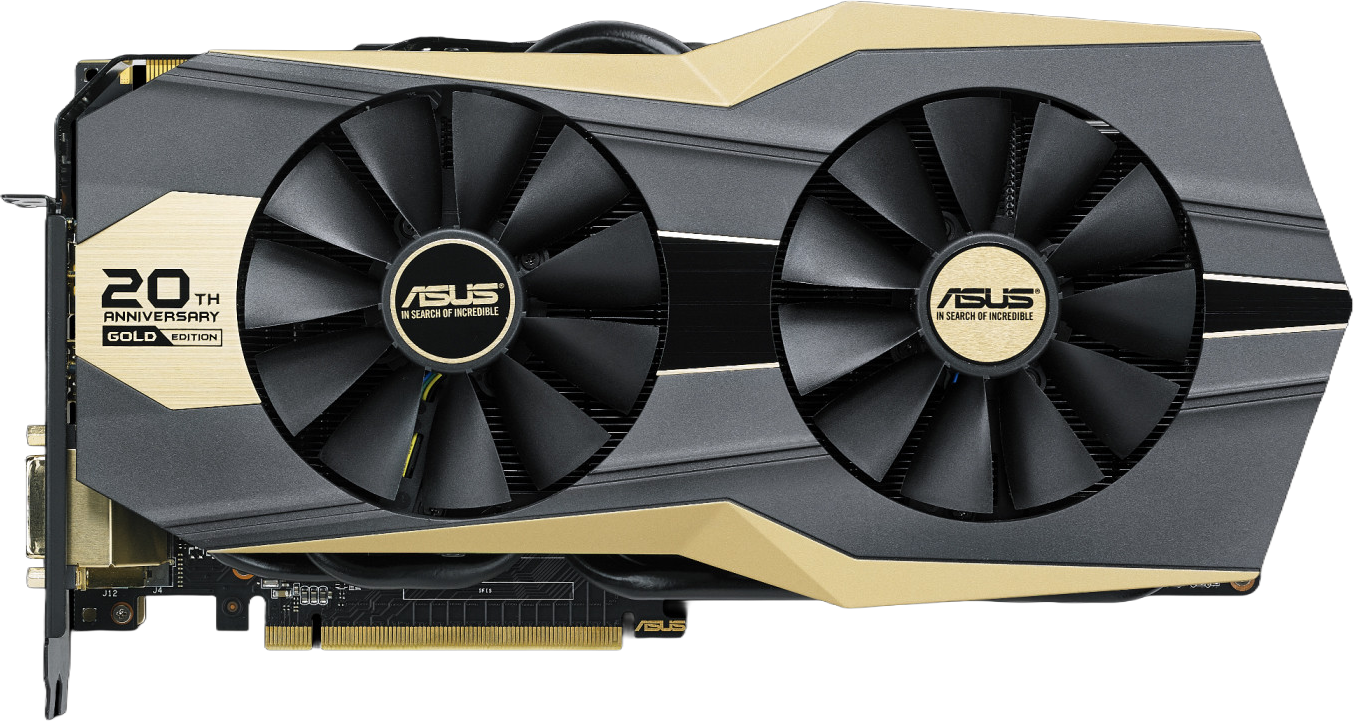

Asus GOLD20TH GTX 980 Ti Platinum
GOLD20TH-GTX980TI-P-6G-GAMING
ASUS is releasing the GTX 980 Ti version for the 20th Anniversary Golden Edition to celebrate 20 years of making graphics cards. This will be the last chance to get the limited edition gold card. It is not just a GTX 980 Ti in gold, this is the fastest GTX 980 Ti on the planet - even without liquid cooling! Yes, you can buy it, with the GPU base clock set to a whopping 1,266MHz, and 1,367Mhz for GPU boosted clock! To put that in perspective, that is even higher than the mighty ROG Matrix GTX 980 Ti with a base clock of of 1,216 MHz and boosted clock of 1,317Mhz! This translates to 22.1% more performance in Grand Theft Auto V and 20.8% more frames per second in Witcher 3 when compared to reference!

Information
PlatformConsumer
ArchitectureMaxwell 2.0
GenerationGeForce 900
Previous GenGeForce 700
Next GenGeForce 10
InterfacePCIe 3.0 x16
Core
NameGM200
FoundryTSMC
Process Node28 nm
Transistors8000 million
Die Size601 mm²
Density13.3 /mm²
GPU Core Config
Cores2816
TMUs176
ROPs96
Memory
TechnologyGDDR5
Size6 GB
Bus384 bit
Bandwidth336.576 GB/s
Speed7.012 Gbps

Information
Platform	Consumer
Architecture	Maxwell 2.0
Generation	GeForce 900
Previous Gen	GeForce 700
Next Gen	GeForce 10
Interface	PCIe 3.0 x16

Core
Name	GM200
Foundry	TSMC
Process Node	28 nm
Transistors	8000 million
Die Size	601 mm²
Density	13.3 /mm²

GPU Core Config
Cores	2816
TMUs	176
ROPs	96

Memory
Technology	GDDR5
Size	6 GB
Bus	384 bit
Bandwidth	336.576 GB/s
Speed	7.012 Gbps

Clocks
Base clock1266 MHz 1000 MHz
Boost Clock1367 MHz 1076 MHz
Memory Clock1753 MHz
Power
8-pin2
TDP250 w
Recommended PSU600 w
Display
DisplayPort3
HDMI1
DVI1
Dimensions
Slots2

Clocks
Base clock	1266 MHz 1000 MHz
Boost Clock	1367 MHz 1076 MHz
Memory Clock	1753 MHz

Power
8-pin	2
TDP	250 w
Recommended PSU	600 w

Display
DisplayPort	3
HDMI	1
DVI	1

Dimensions
Slots	2

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus GOLD20TH GTX 980 Ti Platinum GOLD20TH-GTX980TI-P-6G-GAMING	1367 MHz +27.0%		mm	mm	mm
Asus ROG Matrix GTX 980 Ti MATRIX-GTX980TI-P-6GD5-GAMING	1076 MHz		mm	mm	mm
