MSI GeForce GTX 980 Ti GAMING
Specs, info and data
The GPU Database
Featuring 270+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 980 Ti > MSI GeForce GTX 980 Ti GAMING

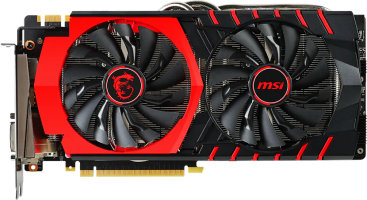

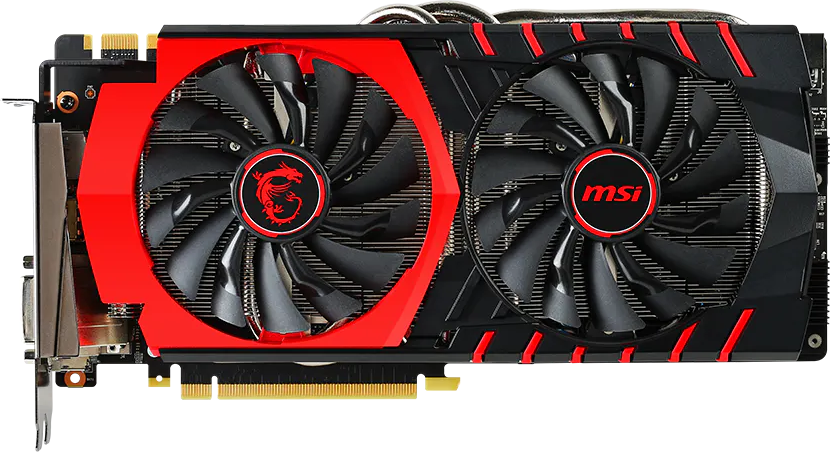

MSI GeForce GTX 980 Ti GAMING - Front

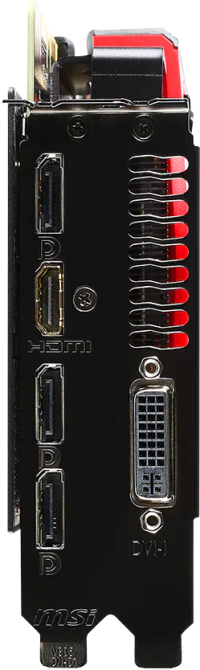

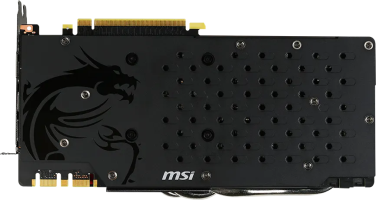

MSI GeForce GTX 980 Ti GAMING - Front MSI GeForce GTX 980 Ti GAMING - Rear MSI GeForce GTX 980 Ti GAMING - Side MSI GeForce GTX 980 Ti GAMING - Outputs
MSI GeForce GTX 980 Ti GAMING
GTX-980-TI-GAMING-6G
Information
PlatformConsumer
ArchitectureMaxwell 2.0
GenerationGeForce 900
Previous GenGeForce 700
Next GenGeForce 10
InterfacePCIe 3.0 x16
Core
NameGM200
FoundryTSMC
Process Node28 nm
Transistors8000 million
Die Size601.0 mm²
Density13.3 /mm²
GPU Core Config
Cores2816
TMUs176
ROPs96
Memory
TechnologyGDDR5
Size6 GB
Bus384 bit
Bandwidth336.6 GB/s
Speed7.0 Gbps
Clocks
Base clock1178 MHz 1000 MHz
Boost Clock1279 MHz 1076 MHz
Memory Clock1753 MHz
Power
8-pin2
TDP250 w
Recommended PSU600 w
Display
DisplayPort3 1.2
HDMI1
DVI-I1
Dimensions
Slots2
Length277 mm
Height140 mm
Width40 mm
Weight1068 g
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Asus GOLD20TH GTX 980 Ti Platinum
GOLD20TH-GTX980TI-P-6G-GAMING
1367 MHz +27.0%
Asus ROG Matrix GTX 980 Ti Platinum
MATRIX-GTX980TI-P-6GD5-GAMING
1291 MHz +20.0%2
MSI GeForce GTX 980 Ti LIGHTNING
GTX-980-TI-LIGHTNING
1304 MHz +21.2%2.7330 mm140 mm53 mm
Colorful iGame GTX 980 Ti 20th Anniversary Edition
1291 MHz +20.0%1.3294 mm153 mm26 mm
Asus ROG Poseidon GTX 980 Ti Platinum
POSEIDON-GTX980TI-P-6GD5
1203 MHz +11.8%2287 mm
Asus STRIX GTX 980 Ti OC
STRIX-GTX980TI-DC3OC-6GD5-GAMING
1076 MHz
MSI GeForce GTX 980 Ti GAMING GOLDEN EDITION
GTX-980-TI-GAMING-6G-GOLDEN-EDITION
1291 MHz +20.0%2277 mm141 mm40 mm
MSI GeForce GTX 980 Ti GAMING
GTX-980-TI-GAMING-6G
1279 MHz +18.9%2277 mm140 mm40 mm
MSI GeForce GTX 980 Ti GAMING LE
GTX-980-TI-GAMING-6G-LE
1114 MHz +3.5%2277 mm140 mm40 mm
MSI GeForce GTX 980 Ti LIGHTNING LE
GTX-980-TI-LIGHTNING-LE
1114 MHz +3.5%2.7330 mm140 mm53 mm
MSI GeForce GTX 980 Ti SEA HAWK
GTX-980-TI-SEA-HAWK
1291 MHz +20.0%2270 mm111 mm40 mm
Asus STRIX GTX 980 Ti DirectCU III OC
STRIX-GTX980TI-DC3OC-6GD5-GAMING
1291 MHz +20.0%2305 mm
Asus STRIX GTX 980 Ti DirectCU III
STRIX-GTX980TI-DC3-6GD5-GAMING
1076 MHz2305 mm40 mm
MSI GeForce GTX 980 Ti Armor 2X OC
GTX-980-TI-6GD5T-OC
1190 MHz +10.6%2277 mm135 mm37 mm
MSI GeForce GTX 980 Ti V1
GTX-980-TI-6GD5-V1
1076 MHz2281 mm111 mm38 mm
