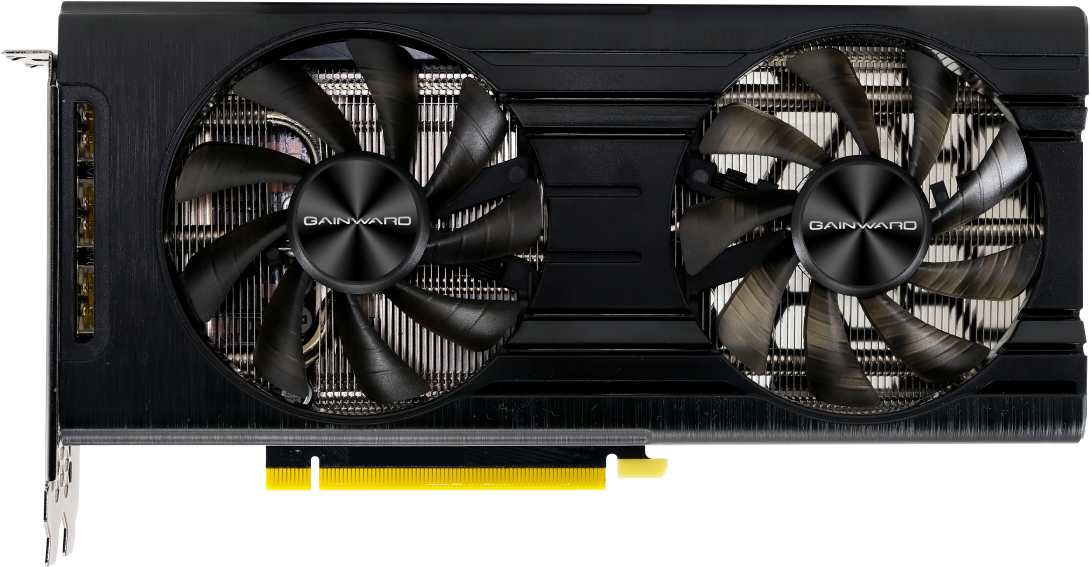

Gainward GeForce RTX 3050 Ghost
Gainward GeForce RTX 3050 Ghost
NE63050019P1-190AB
Information
PlatformConsumer
ArchitectureAmpere
GenerationGeForce RTX 30
Previous GenGeForce RTX 20
Next GenGeForce RTX 40
InterfacePCIe 4.0 x8
Max temperature93 C
Core
NameGA106
FoundrySamsung
Process Node8 nm
Transistors12000 million
Die Size276 mm²
Density43.5 /mm²
GPU Core Config
Cores2560
TMUs80
ROPs32
SMs20
Tensor Cores80
RT Cores20
Memory
TechnologyGDDR6
Size8 GB
Bus128 bit
Bandwidth224 GB/s
Speed14 Gbps
Clocks
Base clock1545 MHz
Boost Clock1777 MHz 1785 MHz
Memory Clock1750 MHz
Power
8-pin1
TDP130 w
Recommended PSU550 w

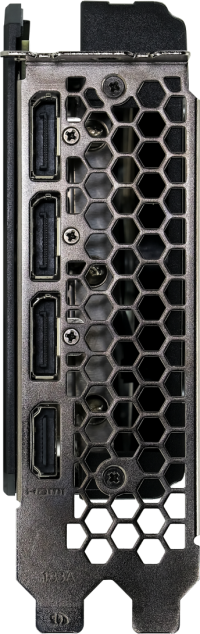

Display
DisplayPort2
HDMI1
Resolution7680x4320
Monitors4
Dimensions
Slots2

Bios files
94.06.37.00.5C
N/A
Size: 2000 KB
Build: 2021-11-30

Models
GPUBoost ClockSlotsLengthHeightWidth
1777 MHz -0.4%2 mm mm mm
1785 MHz mm mm mm
1785 MHz mm mm mm
