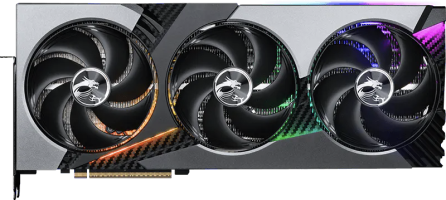

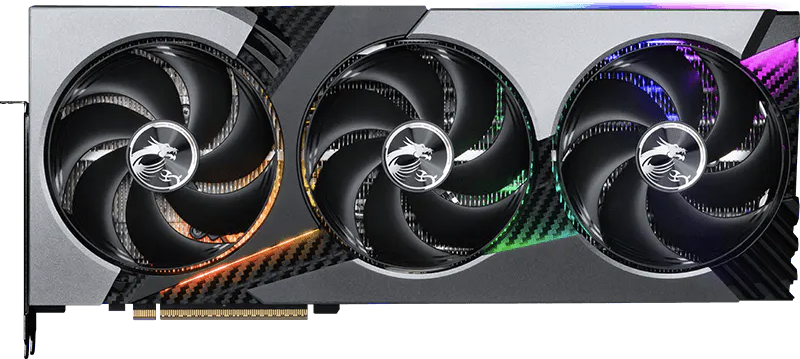

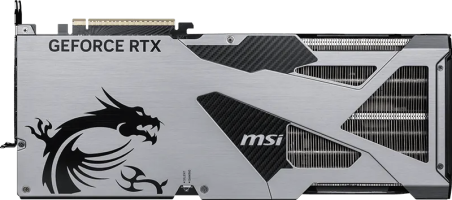

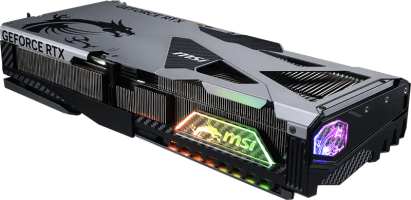

MSI GeForce RTX 5070 Ti VANGUARD SOC
G507T-16VGS
MSI Vanguard series graphics card embodies the spirit of exploration. Premium gaming craftsmanship is expressed with aerodynamic edges, fractured lines, and futuristic RGB lights that empower players to push the limits of adventure while exploring uncharted worlds.

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
NameGB203
InterfacePCIe 5.0 x16
Max temperature88 C
Core
NameGB203
FoundryTSMC
Process Node5 nm
Transistors45600 million
Die Size378 mm²
Density120.6 /mm²
GPU Core Config
Cores8960
TMUs280
ROPs96
SMs70
RT Cores70
Memory
TechnologyGDDR7
Size16 GB
Bus256 bit
Bandwidth896 GB/s
Speed28 Gbps

Information
Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Name	GB203
Interface	PCIe 5.0 x16
Max temperature	88 C

Core
Name	GB203
Foundry	TSMC
Process Node	5 nm
Transistors	45600 million
Die Size	378 mm²
Density	120.6 /mm²

GPU Core Config
Cores	8960
TMUs	280
ROPs	96
SMs	70
RT Cores	70

Memory
Technology	GDDR7
Size	16 GB
Bus	256 bit
Bandwidth	896 GB/s
Speed	28 Gbps

Clocks
Base clock2295 MHz
Boost Clock2588 MHz 2452 MHz
Memory Clock1750 MHz
Power
16-pin1
TDP300 w
Recommended PSU750 w

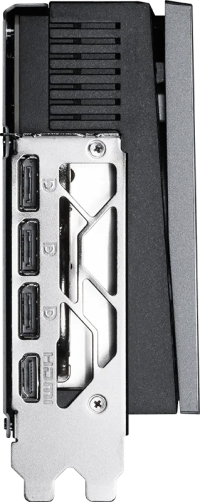

Display
DisplayPort3 2.1b
HDMI1 2.1b
HDCP2.3
Dimensions
Slots3.3
Length357 mm
Height151 mm
Width66 mm
Weight1945 g

Clocks
Base clock	2295 MHz
Boost Clock	2588 MHz 2452 MHz
Memory Clock	1750 MHz

Power
16-pin	1
TDP	300 w
Recommended PSU	750 w

Display
DisplayPort	3 2.1b
HDMI	1 2.1b
HDCP	2.3

Dimensions
Slots	3.3
Length	357 mm
Height	151 mm
Width	66 mm
Weight	1945 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus ROG Strix GeForce RTX 5070 Ti ROG-STRIX-RTX5070TI-16G-GAMING	2452 MHz	3.2	332 mm	147.3 mm	64 mm
Asus ROG Strix GeForce RTX 5070 Ti OC Edition ROG-STRIX-RTX5070TI-O16G-GAMING	2602 MHz +6.1%	3.2	332 mm	147.3 mm	64 mm
Zotac GeForce RTX 5070 Ti AMP Extreme INFINITY ULTRA ZT-B50710BU-10P	2572 MHz +4.9%	3.5	332.1 mm	137.5 mm	69.6 mm
Zotac GeForce RTX 5070 Ti AMP Extreme INFINITY ZT-B50710B-10P	2512 MHz +2.4%	3.5	332.1 mm	137.5 mm	69.6 mm
Zotac GeForce RTX 5070 Ti SOLID OC ZT-B50710J-10P	2482 MHz +1.2%	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5070 Ti SOLID ZT-B50710D-10P	2452 MHz	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5070 Ti SOLID CORE OC White Edition ZT-B50710Q2-10P	2482 MHz +1.2%	2.8	303.5 mm	115.8 mm	55.7 mm
Zotac GeForce RTX 5070 Ti SOLID CORE OC ZT-B50710J2-10P	2482 MHz +1.2%	2.8	303.5 mm	115.8 mm	55.7 mm
Zotac GeForce RTX 5070 Ti SOLID CORE ZT-B50710D2-10P	2452 MHz	2.8	303.5 mm	115.8 mm	55.7 mm
Zotac GeForce RTX 5070 Ti SOLID SFF OC ZT-B50710J3-10A	2482 MHz +1.2%	2.1	304.4 mm	115.8 mm	41.6 mm
Zotac GeForce RTX 5070 Ti SOLID SFF ZT-B50710D3-10P	2452 MHz	2.1	304.4 mm	115.8 mm	41.6 mm
Gigabyte AORUS GeForce RTX 5070 Ti MASTER GV-N507TAORUS M-16GD	2670 MHz +8.9%	3.8	360 mm	150 mm	75 mm
Gigabyte GeForce RTX 5070 Ti GAMING OC GV-N507TGAMING OC-16GD	2588 MHz +5.5%	3.5	342 mm	142 mm	70 mm
Gigabyte GeForce RTX 5070 Ti GAMING GV-N507TGAMING-16GD	2452 MHz	3.5	342 mm	142 mm	70 mm
Gigabyte GeForce RTX 5070 Ti EAGLE OC ICE SFF GV-N507TEAGLEOC ICE-16GD	2542 MHz +3.7%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti EAGLE OC SFF GV-N507TEAGLE OC-16GD	2542 MHz +3.7%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti EAGLE SFF GV-N507TEAGLE-16GD	2452 MHz	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti AERO OC GV-N507TAERO OC-16GD	2588 MHz +5.5%	3.5	342 mm	140 mm	70 mm
Gigabyte GeForce RTX 5070 Ti WINDFORCE OC V2 GV-N507TWF3OCV2-16GD	2497 MHz +1.8%	2.5	261 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF GV-N507TWF3OC-16GD	2497 MHz +1.8%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti WINDFORCE SFF GV-N507TWF3-16GD	2452 MHz	2.5	304 mm	126 mm	50 mm
Asus ProArt GeForce RTX 5070 Ti PROART-RTX5070TI-16G	2452 MHz	2.5	304 mm	126 mm	50 mm
Asus ProArt GeForce RTX 5070 Ti OC Edition PROART-RTX5070TI-O16G	2588 MHz +5.5%	2.5	304 mm	126 mm	50 mm
Asus TUF Gaming GeForce RTX 5070 Ti BTF White OC Edition TUF-RTX5070TI-O16G-BTF-WHITE	2588 MHz +5.5%	3.2	329 mm	140 mm	62.5 mm
Asus TUF Gaming GeForce RTX 5070 Ti BTF White Edition TUF-RTX5070TI-16G-BTF-WHITE	2452 MHz	3.2	329 mm	140 mm	62.5 mm
Asus TUF Gaming GeForce RTX 5070 Ti White OC Edition TUF-RTX5070TI-O16G-WHITE-GAMING	2588 MHz +5.5%	3.2	329 mm	140 mm	62.5 mm
Asus PRIME GeForce RTX 5070 Ti PRIME-RTX5070TI-16G	2452 MHz	2.5	304 mm	126 mm	50 mm
Asus PRIME GeForce RTX 5070 Ti OC Edition PRIME-RTX5070TI-O16G	2497 MHz +1.8%	2.5	304 mm	126 mm	50 mm
Asus TUF Gaming GeForce RTX 5070 Ti TUF-RTX5070TI-16G-GAMING	2452 MHz	3.2	329 mm	140 mm	62.5 mm
Asus TUF Gaming GeForce RTX 5070 Ti OC Edition TUF-RTX5070TI-O16G-GAMING	2588 MHz +5.5%	3.2	329 mm	140 mm	62.5 mm
MSI GeForce RTX 5070 Ti FRIEREN EDITION OC G507T-16FEC	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti VENTUS 3X PZ G507T-16V3Z	2452 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti VENTUS 3X PZ OC G507T-16V3ZC	2482 MHz +1.2%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti MLG EDITION G507T-16ME	2452 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti MLG EDITION OC G507T-16MEC	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti EXPERT G507T-16E	2452 MHz	3	319 mm	150 mm	60 mm
MSI GeForce RTX 5070 Ti EXPERT OC G507T-16EC	2580 MHz +5.2%	3	319 mm	150 mm	60 mm
MSI GeForce RTX 5070 Ti INSPIRE 3X G507T-16I3	2452 MHz	2.5	288 mm	122 mm	50 mm
MSI GeForce RTX 5070 Ti INSPIRE 3X OC G507T-16I3C	2482 MHz +1.2%	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO G507T-16GT	2452 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO OC G507T-16GTC	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO WHITE G507T-16GTW	2452 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO OC WHITE G507T-16GTCW	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO PLUS G507T-16GTP	2452 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO OC PLUS G507T-16GTCP	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti SHADOW 3X G507T-16S3	2452 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti SHADOW 3X OC G507T-16S3C	2482 MHz +1.2%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti VANGUARD SOC LAUNCH EDITION G507T-16VGSL	2588 MHz +5.5%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5070 Ti VANGUARD SOC G507T-16VGS	2588 MHz +5.5%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5070 Ti VANGUARD OC G507T-16VGC	2572 MHz +4.9%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5070 Ti VENTUS 3X G507T-16V3	2452 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti VENTUS 3X OC G507T-16V3C	2482 MHz +1.2%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti INSPIRE 3X PLUS G507T-16I3P	2452 MHz	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5070 Ti INSPIRE 3X OC PLUS G507T-16I3CP	2482 MHz +1.2%	2.5	288 mm	112 mm	50 mm
Palit GeForce RTX 5070 Ti GamingPro-S NE7507T019T2-GB2031U	2452 MHz	2.5	331.9 mm	127.1 mm	49.7 mm
Palit GeForce RTX 5070 Ti GamingPro-S OC NE7507TS19T2-GB2031U	2482 MHz +1.2%	2.5	331.9 mm	127.1 mm	49.7 mm
Palit GeForce RTX 5070 Ti GamingPro V1 NE7507T019T2-GB2031Y	2452 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 Ti GamingPro OC V1 NE7507TS19T2-GB2031Y	2482 MHz +1.2%	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 Ti GamingPro NE7507T019T2-GB2031A	2452 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 Ti GamingPro OC NE7507TS19T2-GB2031A	2482 MHz +1.2%	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 Ti GameRock NE7507T019T2-GB2030G	2452 MHz	3.6	331.9 mm	150 mm	70.4 mm
Palit GeForce RTX 5070 Ti GameRock OC NE7507TH19T2-GB2030G	2512 MHz +2.4%	3.6	331.9 mm	160 mm	70.4 mm
