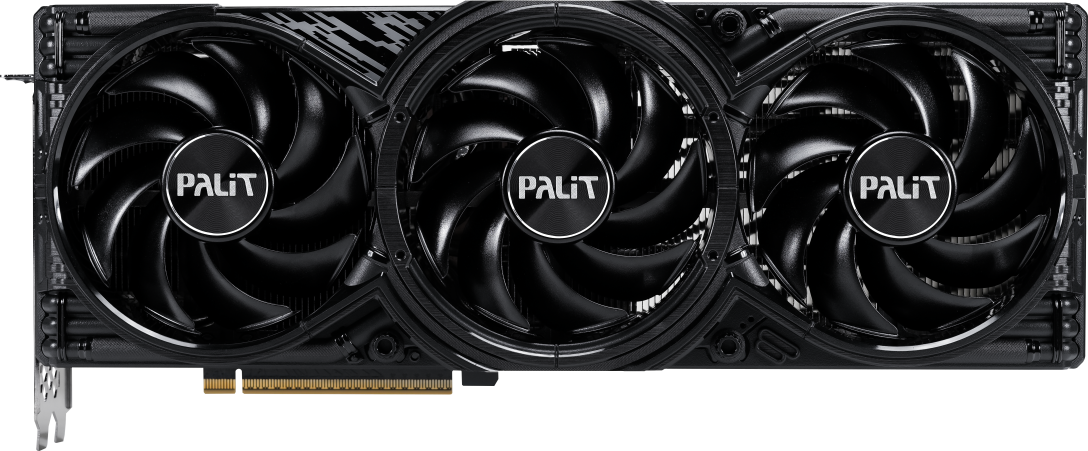

Palit GeForce RTX 5070 Ti GamingPro OC
NE7507TS19T2-GB2031A
The Palit GamingPro Series merges sleek, industrial design with robust performance.

Its ARGB accents and advanced cooling solutions—featuring TurboFan 4.0, Air Deflector, and Composite Heat Pipes— ensure optimal thermal efficiency. Features like dual BIOS, 0dB technology, and a die-casting frame enhance its performance flexibility and board reliability. With Palit Maker support, users can easily customize the cooler cover via 3D printing.

Balancing functionality and style, it’s an ideal choice for gamers, creators, and AI professionals.

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
NameGB203
InterfacePCIe 5.0 x16
Max temperature88 C
Core
NameGB203
FoundryTSMC
Process Node5 nm
Transistors45600 million
Die Size378 mm²
Density120.6 /mm²
GPU Core Config
Cores8960
TMUs280
ROPs96
SMs70
RT Cores70
Memory
TechnologyGDDR7
Size16 GB
Bus256 bit
Bandwidth896 GB/s
Speed28 Gbps

Information
Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Name	GB203
Interface	PCIe 5.0 x16
Max temperature	88 C

Core
Name	GB203
Foundry	TSMC
Process Node	5 nm
Transistors	45600 million
Die Size	378 mm²
Density	120.6 /mm²

GPU Core Config
Cores	8960
TMUs	280
ROPs	96
SMs	70
RT Cores	70

Memory
Technology	GDDR7
Size	16 GB
Bus	256 bit
Bandwidth	896 GB/s
Speed	28 Gbps

Clocks
Base clock2295 MHz
Boost Clock2482 MHz 2452 MHz
Memory Clock1750 MHz
Power
16-pin1
TDP300 w
Recommended PSU750 w
Display
DisplayPort3 2.1b
HDMI1 2.1b
HDCP2.3
Dimensions
Slots3
Length331.9 mm
Height127.1 mm
Width60 mm

Clocks
Base clock	2295 MHz
Boost Clock	2482 MHz 2452 MHz
Memory Clock	1750 MHz

Power
16-pin	1
TDP	300 w
Recommended PSU	750 w

Display
DisplayPort	3 2.1b
HDMI	1 2.1b
HDCP	2.3

Dimensions
Slots	3
Length	331.9 mm
Height	127.1 mm
Width	60 mm
