| Information | |
|---|---|
| Platform | Workstation |
| Architecture | Ampere |
| Generation | GeForce RTX 30 |
| Previous Gen | GeForce RTX 20 |
| Next Gen | GeForce RTX 40 |
| Core | |
|---|---|
| Name | GA106 |
| Foundry | Samsung |
| Process Node | 8 nm |
| Transistors | 12000 million |
| Die Size | 276 mm² |
| Density | 43.5 /mm² |
| GPU Core Config | |
|---|---|
| Cores | 3328 |
| TMUs | 104 |
| ROPs | 48 |
| Tensor Cores | 104 |
| RT Cores | 26 |
| Memory | |
|---|---|
| Technology | GDDR6 |
| Size | 6 GB |
| Bus | 192 bit |
| Bandwidth | 288 GB/s |
| Speed | 12 Gbps |
| Clocks | |
|---|---|
| Base clock | 562 MHz |
| Boost Clock | 1200 MHz |
| Memory Clock | 1500 MHz |
| Power | |
|---|---|
| TDP | 70 w |
| Recommended PSU | 500 w |
| Display | |
|---|---|

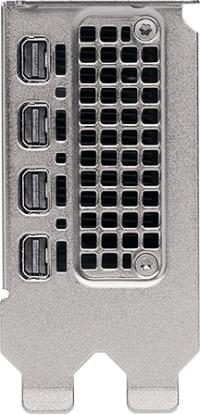

| Mini DisplayPort | 4 |
| Dimensions | |
|---|---|
| Slots | 2 |
| GPU▲ | Boost Clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|
| 1200 MHz | mm | mm | mm |
