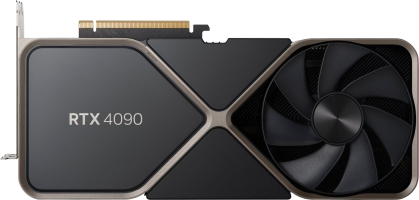

NVIDIA RTX 4090 24GB

The RTX 4090 24GB is a consumer-grade GPU from nvidia's GeForce RTX 40 series, built on the  architecture using the AD102 chip. Equipped with 24 GB of GDDR6X memory on a 384-bit bus, it delivers 1008.4 GB/s of bandwidth at 21.0 Gbps.

Launched on 11 Oct, 2022, the RTX 4090 24GB carried a starting price of $1599.

FP16 Tensor Benchmark295.07 TFLOPS 89.3%
 Theoretical330.3 TFLOPS
FP32 Benchmark81.06 TFLOPS 98.2%
 Theoretical82.6 TFLOPS
FP65 Benchmark1.25 TFLOPS 96.9%
 Theoretical1.29 TFLOPS
Rent RTX 4090 24GB
Cost $0.36/h*
Vast
* Median price
Host RTX 4090 24GB
Earn $0.24/h*
Vast
* Median price
Mine with RTX 4090 24GB
Earn $0.65/d*
Estimates
* Before power cost

Information
PlatformConsumer
ArchitectureAda Lovelace
GenerationGeForce RTX 40
Previous GenGeForce RTX 30
Next GenGeForce RTX 50
InterfacePCIe 4.0 x16
Max temperature90 C
Core
NameAD102
FoundryTSMC
Process Node5 nm
Transistors76300 million
Die Size609 mm²
Density125.3 /mm²
GPU Core Config
Cores16384
TMUs512
ROPs176
SMs128
Tensor Cores512
RT Cores128
Memory
TechnologyGDDR6X
Size24 GB
Bus384 bit
Bandwidth1008.384 GB/s
Speed21.008 Gbps

Information
Platform	Consumer
Architecture	Ada Lovelace
Generation	GeForce RTX 40
Previous Gen	GeForce RTX 30
Next Gen	GeForce RTX 50
Interface	PCIe 4.0 x16
Max temperature	90 C

Core
Name	AD102
Foundry	TSMC
Process Node	5 nm
Transistors	76300 million
Die Size	609 mm²
Density	125.3 /mm²

GPU Core Config
Cores	16384
TMUs	512
ROPs	176
SMs	128
Tensor Cores	512
RT Cores	128

Memory
Technology	GDDR6X
Size	24 GB
Bus	384 bit
Bandwidth	1008.384 GB/s
Speed	21.008 Gbps

Clocks
Base clock2235 MHz
Boost Clock2520 MHz
Memory Clock1313 MHz
Power
16-pin1
TDP450 w
Recommended PSU850 w
Display
DisplayPort3
HDMI1
HDCP2.3
Monitors4
Dimensions
Slots3
Length304 mm
Height137 mm
Width61 mm

Clocks
Base clock	2235 MHz
Boost Clock	2520 MHz
Memory Clock	1313 MHz

Power
16-pin	1
TDP	450 w
Recommended PSU	850 w

Display
DisplayPort	3
HDMI	1
HDCP	2.3
Monitors	4

Dimensions
Slots	3
Length	304 mm
Height	137 mm
Width	61 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus ROG Matrix GeForce RTX 4090 ROG-MATRIX-RTX4090-P24G-GAMING	2670 MHz +6.0%	2.5	mm	mm	mm
Asus ROG Strix GeForce RTX 4090 BTF OC Edition	2520 MHz		mm	mm	mm
Asus ROG Strix GeForce RTX 4090 BTF	2520 MHz		mm	mm	mm
Asus ROG Strix GeForce RTX 4090 OC EVA-02 Edition	2520 MHz		mm	mm	mm
Asus ROG Strix LC GeForce RTX 4090	2520 MHz		mm	mm	mm
Asus ROG Strix LC GeForce RTX 4090 OC Edition	2520 MHz		mm	mm	mm
Asus ROG Strix GeForce RTX 4090 White Edition	2520 MHz		mm	mm	mm
Asus ROG Strix GeForce RTX 4090 White OC Edition	2520 MHz		mm	mm	mm
Asus ROG Strix GeForce RTX 4090	2520 MHz		mm	mm	mm
Asus ROG Strix GeForce RTX 4090 OC Edition	2520 MHz		mm	mm	mm
